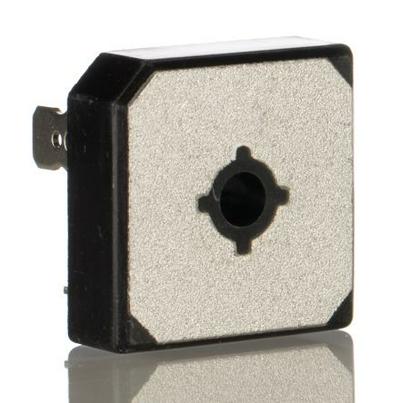

BRIDGE RECTIFIER 25A 100V; No. of Phases:Single Phase; Repetitive Reverse Voltage Vrrm Max:100V; Forward Current If(AV):25A; Bridge Rectifier Case Style:Module; Forward Voltage VF Max:1.11V; No. of Pins:4Pins; Operating Temperature Max:150蚓; Product Range:VS-26 Series; Ambient Temperature Ta:65蚓; Body Height Max:10.5mm; Case Temperature Tc:65蚓; Current Ir Max:2mA; Diode Mounting Type:SMD; Diode Type:Bridge Rectifier; External Depth:28.5mm; External Length / Height:20.3mm; External Width:28.5mm; Fixing Hole Diameter:5mm; Forward Surge Current Ifsm Max:400A; Junction Temperature Tj @ Irrm:150蚓; Junction Temperature Tj Max:150蚓; Junction Temperature Tj Min:-40蚓; Junction to Case Thermal Resistance A:1.7蚓/W; Operating Temperature Min:-40蚓; Operating Temperature Range:-40蚓 to +150蚓; Output Current Max:25A; RMS Input Voltage:70V; Surge Current Frequency:50Hz
