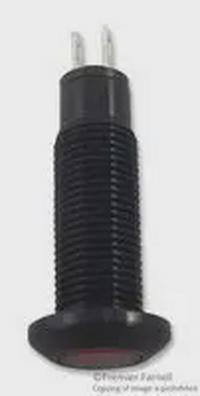

LED INDICATOR 12-28V AC/DC RED; LED Colour:Red; Operating Voltage:28V; Mounting Hole Dia:8.1mm; Forward Current If:16mA; Luminous Intensity:11cd; IP / NEMA Rating:IP67; Product Range:698 Series; SVHC:No SVHC (15-Jan-2019); Behind Panel Depth:24mm; Bezel Diameter:12.7mm; Current If Min:8mA; Fixing Hole Diameter:8.1mm; Forward Current If Max:16mA; Forward Voltage:28V; Lead Length:5mm; Lens Colour:Smoked; Luminous Intensity @ If = 20mA:11000mcd; Luminous Intensity Typ:11000mcd; Material:Aluminium; Operating Temperature Max:95蚓; Operating Temperature Min:-40蚓; Operating Temperature Range:-40蚓 to +95蚓; Panel Cutout Diameter:8.1mm; Peak Forward Current:20mA; Reverse Protection Voltage:1000VDC; Storage Temperature Max:100蚓; Storage Temperature Min:-40蚓; Supply Voltage Max:28VDC; Supply Voltage Min:12VDC; Wavelength Typ:643nm
