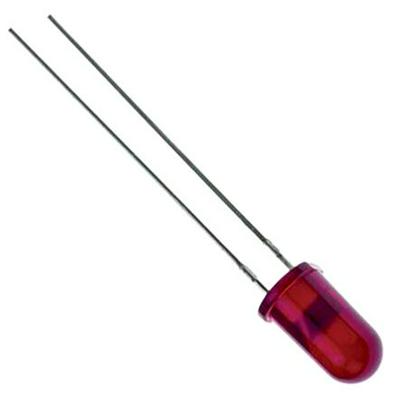

LED 5MM RED 30 MCD 625NM; LED Colour:Red; LED Mounting:Through Hole; LED Case Size:T-1 3/4 (5mm); Forward Current If:8.5mA; Forward Voltage:12V; Wavelength Typ:625nm; Luminous Intensity:30mcd; Viewing Angle:60? Lens Shape:Round; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (15-Jan-2019); Bulb Size:T-1 3/4 (5mm); Current If Luminous Intensity:10mA; Dominant Wavelength:625nm; External Diameter:5mm; External Length / Height:8.6mm; Forward Current If Max:8.5mA; Forward Voltage VF Max:12V; LED / Lamp Size:5mm / T-1 3/4; LED Type:Standard; Lead Cross-section Depth:0.5mm; Lead Cross-section Width:0.5mm; Lead Length:25.5mm; Lead Spacing:2.54mm; Luminous Intensity @ If Min:12.5mcd; Luminous Intensity Typ:80mcd; No. of Pins:2Pins; Operating Temperature Max:85蚓; Operating Temperature Min:-40蚓; Operating Temperature Range:-40蚓 to +85蚓; PIV Max:5V; Peak Wavelength:625nm; Supply Voltage V DC:12V
